    Discovery Front End Loader

      Loading...

    Discovery 60 & 75 Front End Loader

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE LANDINI DISCOVERY 60 AND 75 FRONT END LOADER

    CONSTRUCTION

    Discovery Front End Loader Level Lift

    • Loader is a mechanical level lift
    • The arms are made from tappered segments providing maximum strength with optimal pin weight
    • Pins are plated and greasable

    Landini Discovery Front End Loader

    • The loader is quick-detach from the tractor via simple pins
    • Integrated parking stand is provided for loader storage on hard surfaces
    • The loader mounting frame is strengthened with a rear rail. This provides greater strength to the loader frame to avoid damage to the tractor when pushing heaped material

    FEATURES

    Landini Discovery Front End Loader Level Indicator Gauge

    • Bucket level indicator
    • Easy visibility of indicator rod from drivers seat when bucket edge is parallel to the ground

    Landini Discovery Front End Loader Bump Guard

    • Grille guard protection frame

    ATTACHMENT

    Landini Discovery Front End Loader

    • Implement attached to the loader is via a Euro-Hitch style connection allowing easy attachment of other tools and implements to the loader
    • Easy connection and disconnection of attachment from the loader via a single lever
    • The loader is fitted standard with 4-in-1 bucket providing 4 implements in one: conventional bucket scoop; grab for carrying; and blade and back blade for leveling
    • The 4-in-1 bucket requires a third hydraulic function and this is standard on the loader controls

    CONTROLS

    Landini Discovery Front End Loader Joystick

    • Loader is fitted with a joystick control for the raise/lower and crowd/dump functions
    • The 4-in-1 bucket is controlled via a button on the joystick
    • Joystick has a safety lock to prevent inadvertant operation

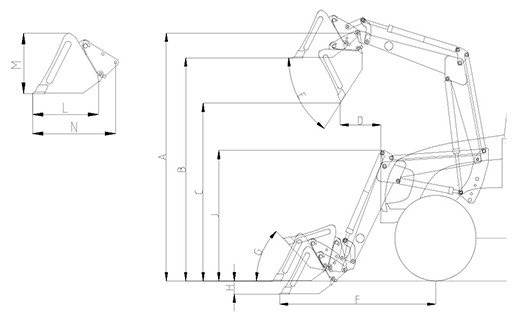

    Landini Loader Specifications Diagram

    Specifications and design are subject to change without notice. These specifications are a general guide.

    SPECIFICATIONS

    Discovery 60 & 75
    4-in-1 Loader
    Loader model KTS754
    Tractor models Discovery 60 & 75 ROPS
    A. Maximum lift height (mm) 3,143
    B. Clearance with attachment level (mm) 2,889
    C. Clearance with attachment dumped - 45 degrees (mm) 2,329
    D. Reach at maximum height - 45 degrees (mm) 219
    E. Maximum dump angle (degrees) 73
    F. Reach with attachment on ground (mm) 1,940
    G. Attachment rollback angle (degrees) 42
    H. Digging depth below grade (mm) 206
    J. Overall height in carry position (mm) 1,616
    L. Depth of attachment - to back of inner shell (mm) 540
    M. Height of attachment (mm) 495
    N. Depth of attachment - to pivot pin (mm) 801
    Lift capacity to full height of pivot pins (kg) 1,245
    Breakout force at ground level, pivot pins (kg) 2,071
    Rated operating load - counter weight on 3PL (kg) 950/750

    Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
